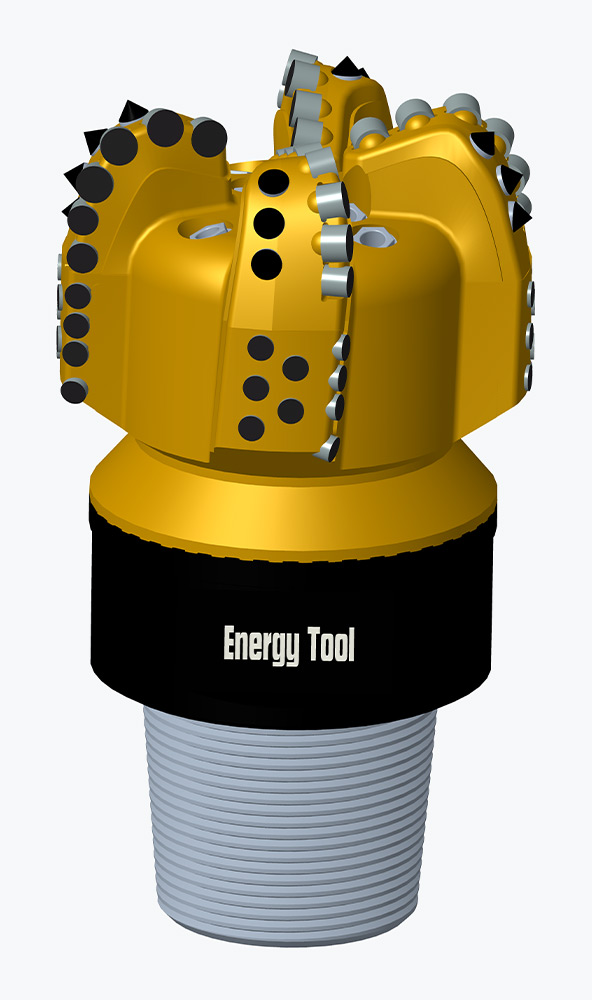

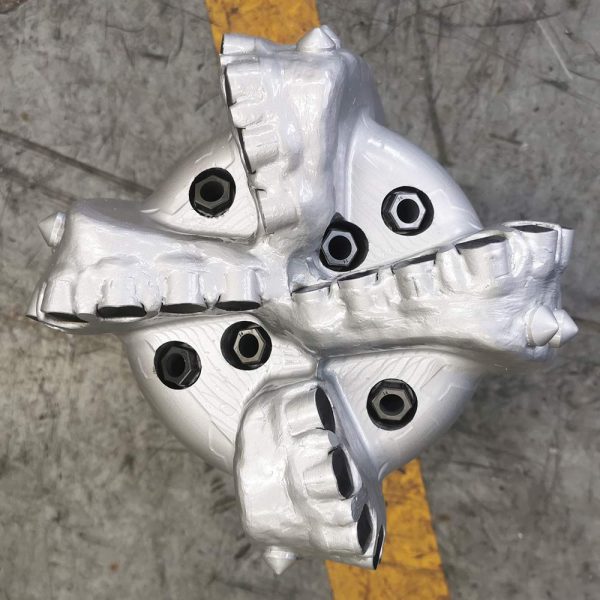

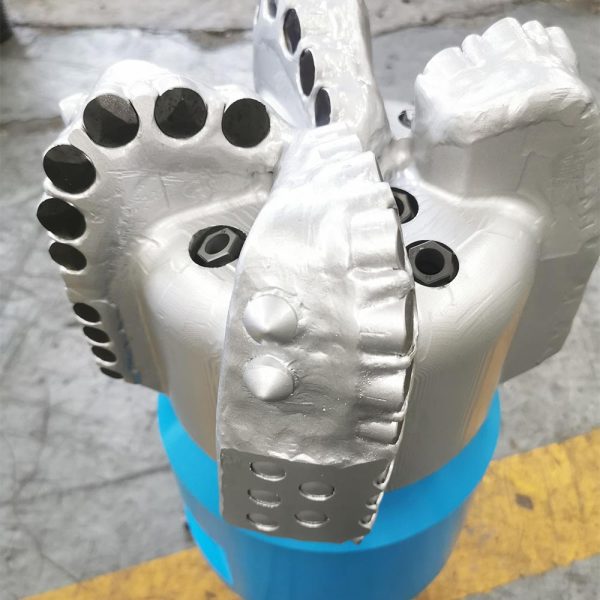

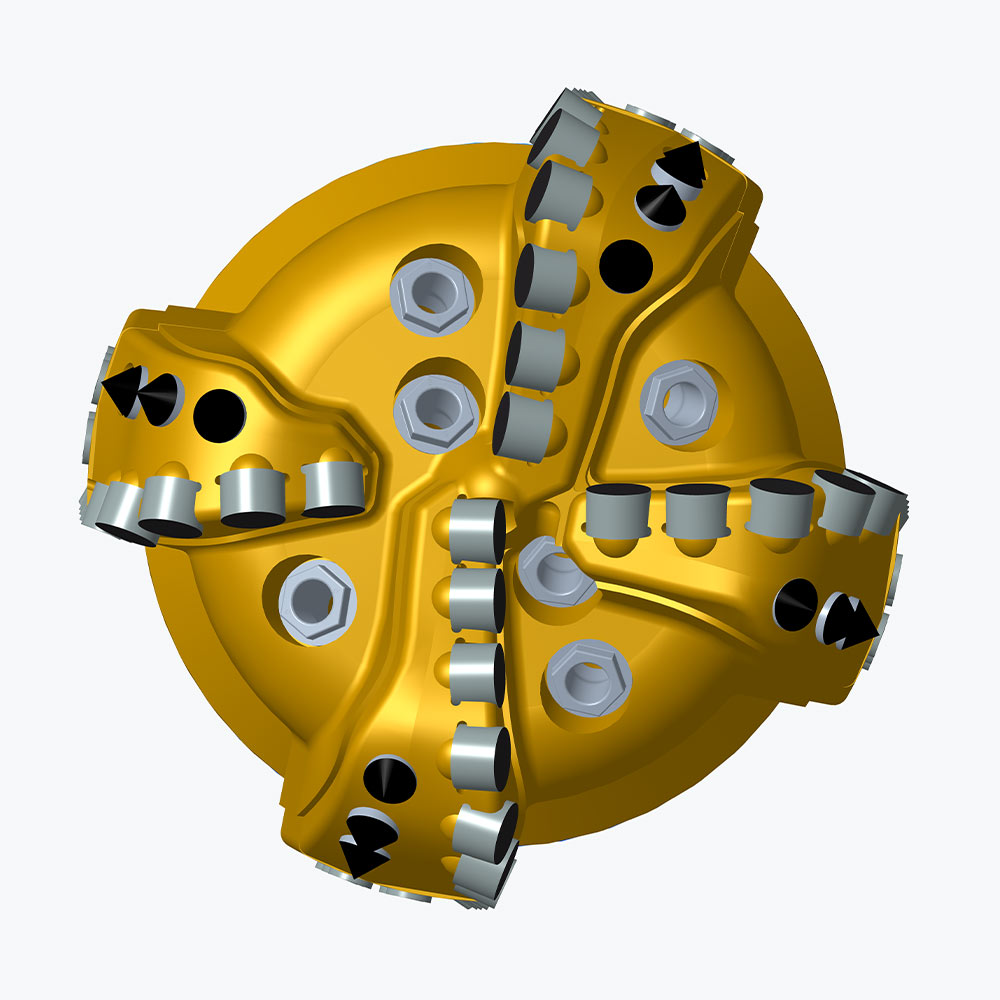

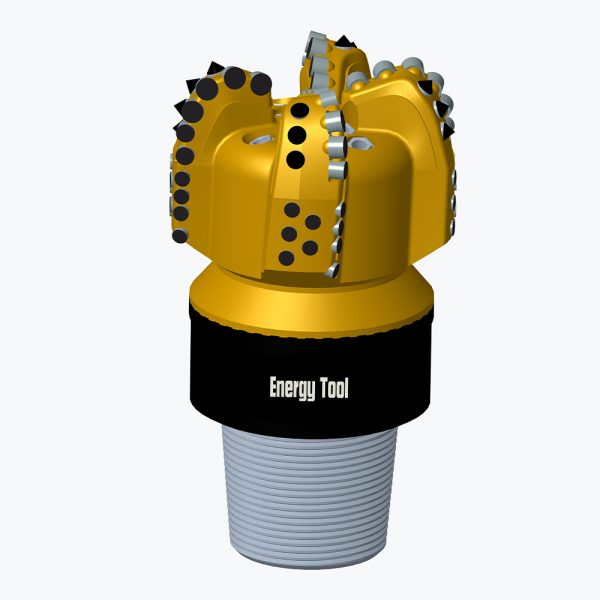

9-1/2 Inch Diamond Fixed Cutter PDC Rock Drill Bit for Oil Gas Mining Well Drilling
| Drill Bit | PDC Drill Bit |
| Size | 9-1/2” (241.3mm) |
| Body Type | Steel Body |
| Blade Count | 4 |
| Primary Cutter Size | 19mm |
| Thread Connection | 6 5/8″ API REG PIN |
| Operating Parameters | |
| Weight On Bit | 89–178 KN |
| Make Up Torque | 38–43 KN·m |
| Rotary Speed | 100–DHM |
| Flow Rate | 48–57 LPS |
PDC Drill Bit Overview
- PDC (Polycrystalline Diamond Composite) drill bit is a type of fixed-cutter drill bit, it uses synthetic diamond cutters to shear and scrape rock away, leading to higher rates of penetration and a longer lifespan.
- Commonly used in oil, gas, mining, and geothermal projects, PDC drill bits offer faster drilling speeds and longer service life compared to conventional drill bits.
- They are particularly valuable in remote or deep drilling environments where efficiency and reliability are critical.
Steel Body Drill Bits
– Made of high-alloy steel, it is durable and easy to maintain.
– It typically features a higher blade spacing and an exposed cutting edge design to improve the rate of penetration.
– Suitable for multiple drilling operations, it is economical and efficient, and can meet various drilling needs.
Advantage of Steel Body PDC Drill Bits
High Impact Resistance
Steel strength and ductility give the bit strong resistance to impact loads.
Flexible CNC Machining
Steel enables easy manufacturing of complex profiles and hydraulic designs on multi-axis CNC machines.
Cost-Effective Choice
A reliable option for lowering overall drilling costs.
Multiple Refurbishment Cycles
Worn blades can be repaired or replaced, allowing the bit to be refurbished many times.
Engineered for Multiple Industries
Our Steel Body PDC Drill Bits are designed for efficient and reliable drilling in oil, gas, and mining operations. Ideal for drilling through hard rock formations, these drill bits provide superior wear resistance, long service life, and consistent performance under extreme conditions.
Packaging & Shipping
Each drill bit is carefully packed to prevent damage during transportation. Standard packaging includes sturdy wooden boxes or reinforced cartons, ensuring safe delivery.
We deliver via air, sea, or land, depending on customer requirements and destination.
