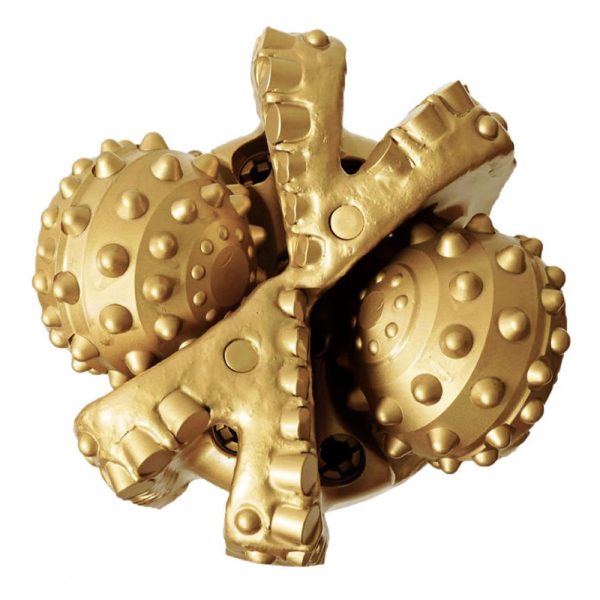

API Factory 5-7/8 inch Hybrid Roller Cone PDC Drill Bit for Mine Oil Gas Drilling
| Drill Bit | Hybrid Drill Bit |
| Size | 5-7/8″ (150mm) |
| PDC Blade | 4 |
| Roller Cone | 2 |
| PDC Cutter Size | 13mm |
| Gauge Length | 50mm |
| Junk Slot Area | 2600mm² |
| Bit Weight | 26kg |
| Operating Parameters | |
| Weight On Bit | 30–100 KN |
| Torque | 6.9–10.23 KN·m |
| Rotary Speed | 50–200 rpm |
| Flow Rate | 10–30 LPS |

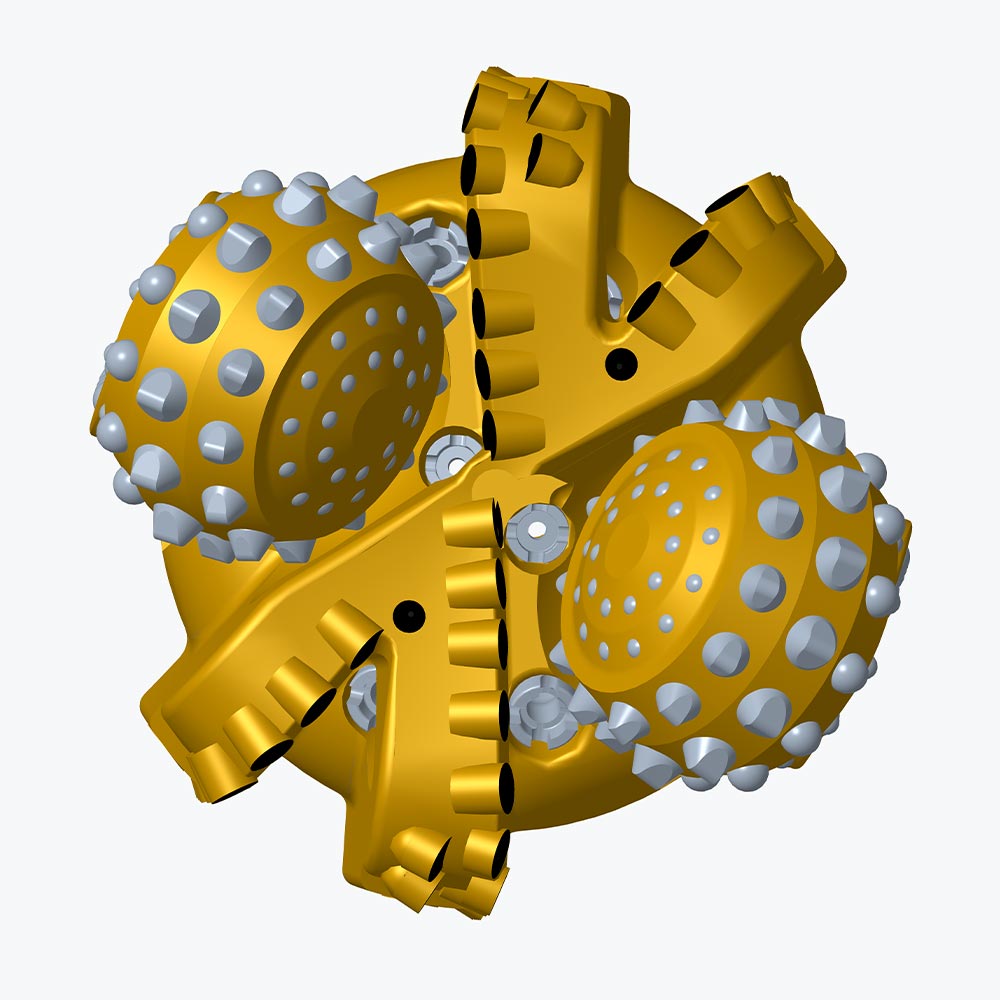

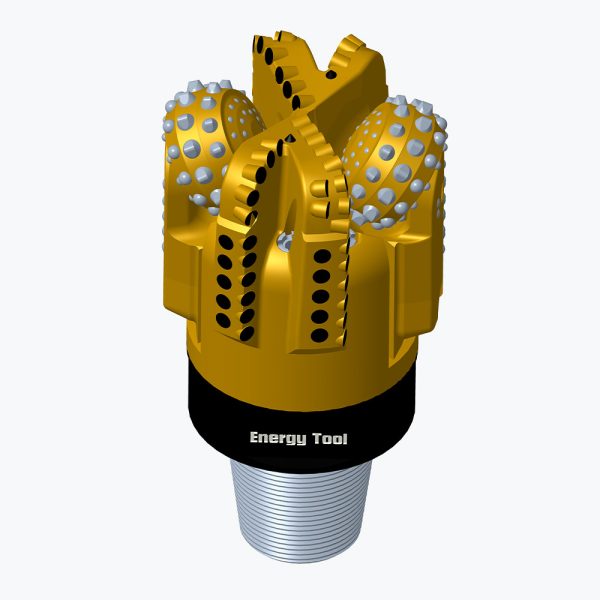

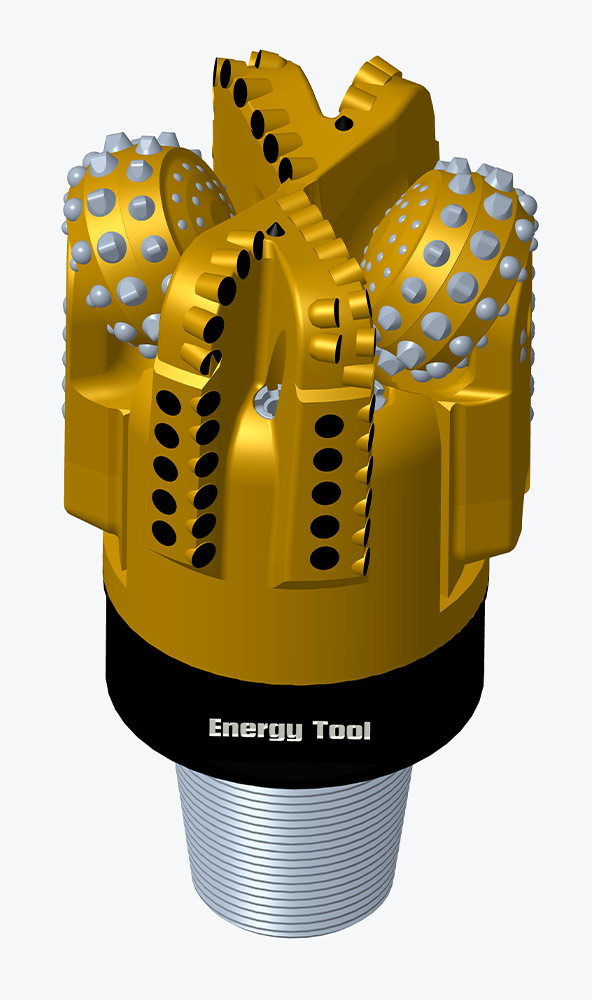

Hybrid Roller Cone PDC Drill Bit
– Suitable for medium-hard to hard formation and interbedded formation, such as flint, conglomerate, quartzite, and granite.
– The bit body is made of superior alloy steel, which has excellent strength and toughness.
– Suitable for directional well.
– The application range has been expanded by adopting technologies such as impact-resistant cutting structures and auxiliary cutting tools.
– CFD hydraulic balance design.
Features of Hybrid Roller Cone PDC Drill Bit
Dual-Action Rock Breaking
The hybrid structure delivers both shearing and crushing, enabling effective drilling through complex formations.
Strong Formation Adaptability
Performs smoothly across soft, medium, and hard layers without frequent bit changes.
Reduced Wear and Heat Build-Up
Optimized hybrid mechanics lower friction and heat, helping maintain performance over longer runs.
Improved Operational Efficiency
Supports higher drilling speed and fewer interruptions, lowering overall drilling costs.
Engineered for Multiple Industries
The Hybrid Roller Cone PDC Drill Bit is engineered for complex drilling environments where formation changes frequently. By integrating PDC shearing efficiency with roller cone crushing power, it ensures stable performance, improved ROP, and longer service life. Ideal for oil, gas, mining, geothermal, and water well drilling applications.
Packaging & Shipping
Each drill bit is carefully packed to prevent damage during transportation. Standard packaging includes sturdy wooden boxes or reinforced cartons, ensuring safe delivery.
We deliver via air, sea, or land, depending on customer requirements and destination.
