4.5 Inch Hole Opener Power Reamer Drilling Tools for Oil Gas Mining Well
| Hole Opening Size | 4.75″-5.75″ (120.6-146mm) |
| Body OD | 4.5″ (114mm) |
| Min. Pilot Hole Size | 4.75″ (120.6mm) |

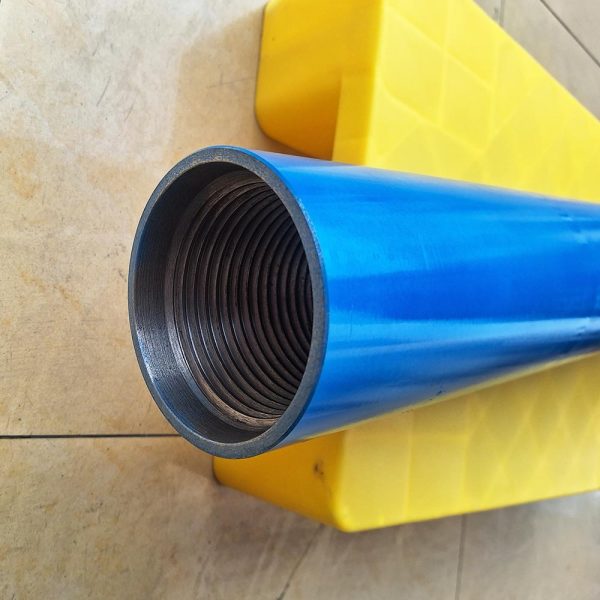

| Box Connection | 3-1/2″ IF Box & 3-1/2″ IF Pin |
| Application | Soft to medium hard formation |
| Cutter Size | 9mm, 13mm |
| Nozzle | 3 X N40 Series |
| Overall Length | 36″ (914mm) |
| Upper Neck Length | 12.25″ (311mm) |
| Upper Neck Diameter | 4.5″ (114mm) |
| Body Length | 12.5″ (317.5mm) |
| Internal Bore Diameter | 1.25″ (32mm) |
| Max. Flow Rate | 33 LPS |
| Weight | 90 KGS |

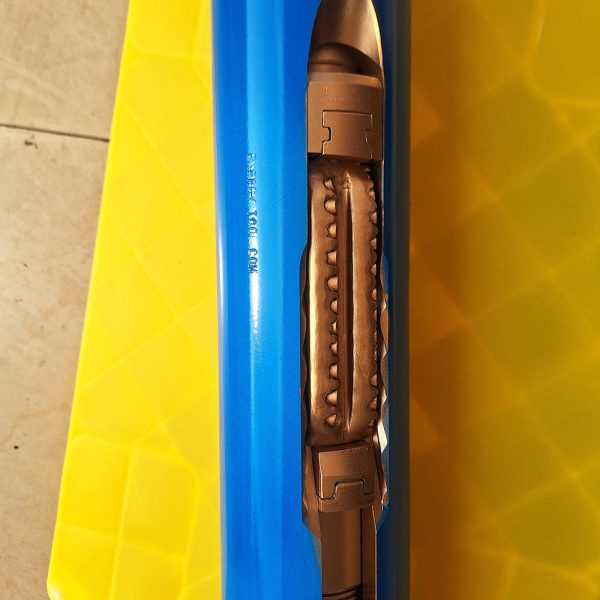

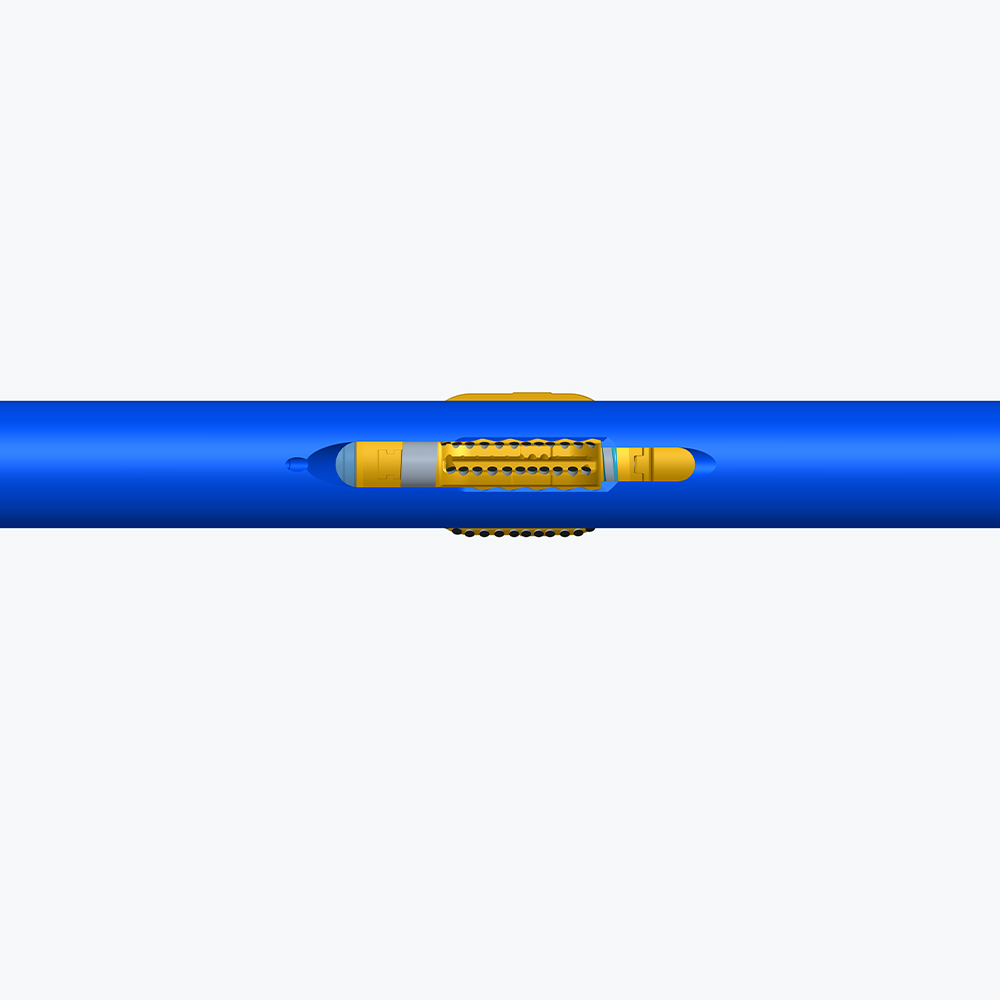

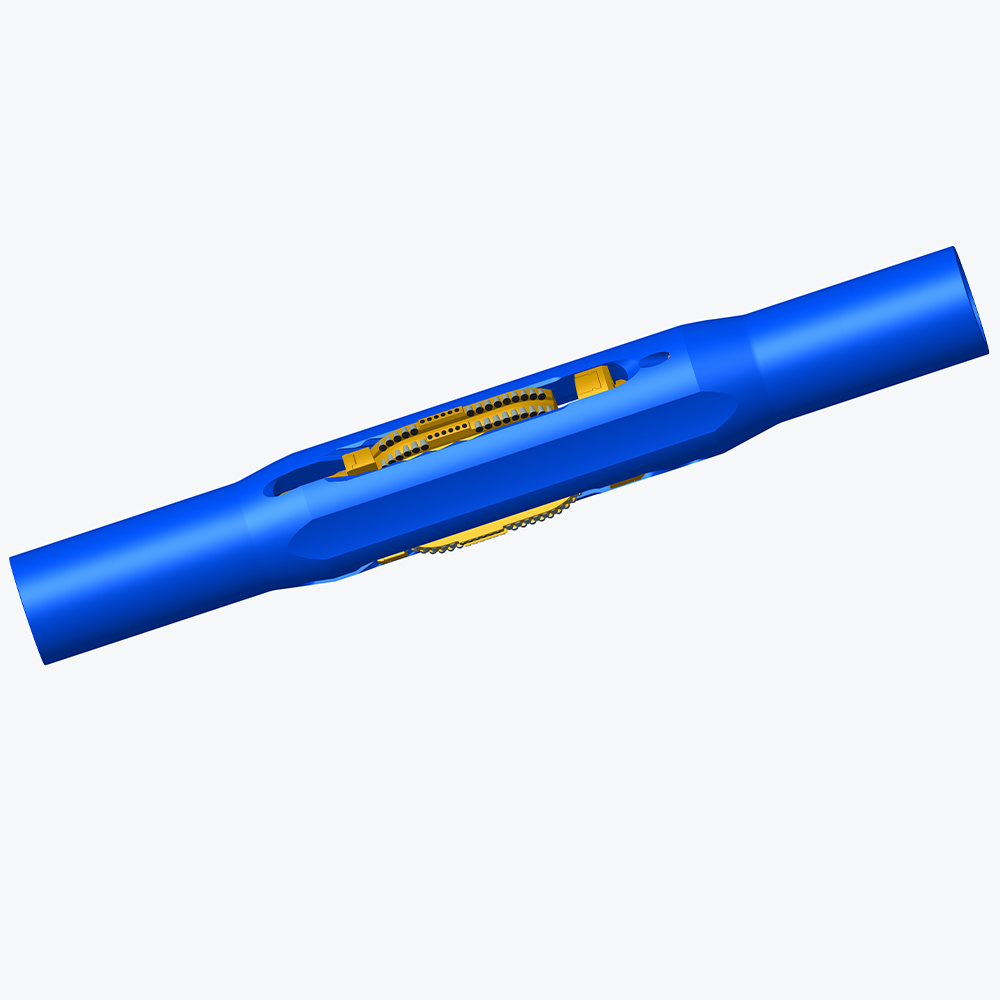

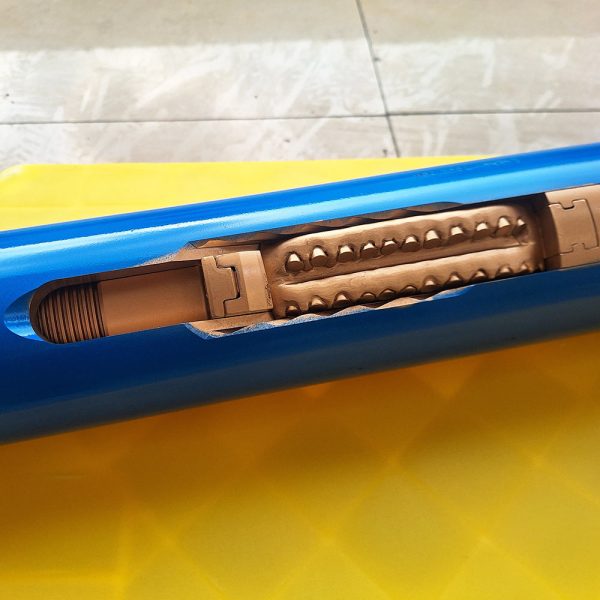

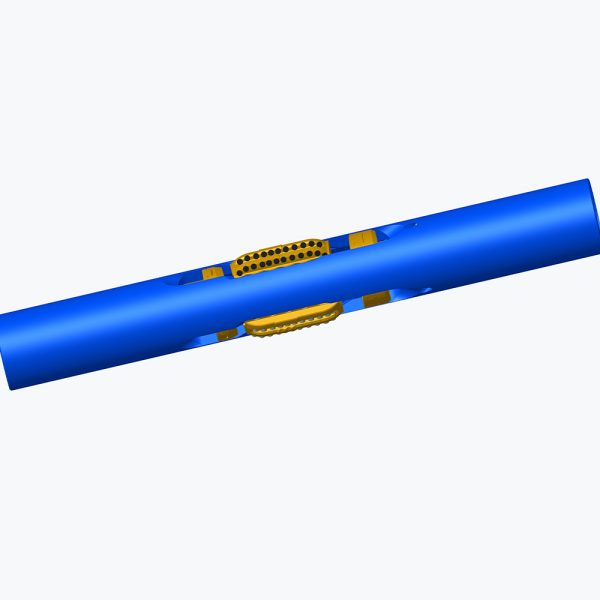

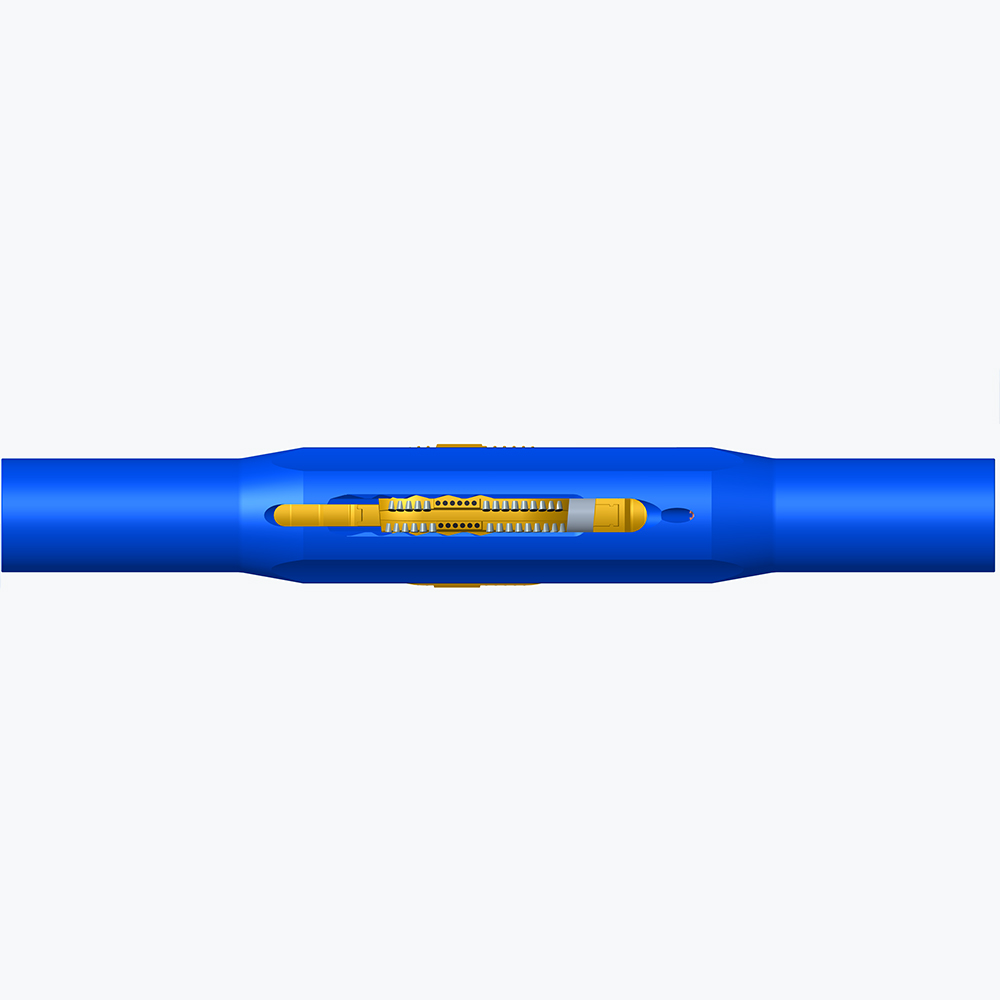

Hole Opener Power Reamer
– The Power Reamer is a hydraulically expandable under-reamer designed to enlarge existing or remaining holes, ensuring a smooth and consistent wellbore.
– Constructed from a one-piece forged body and optimized using FEA and CFD, it offers a robust design while improving hole cleaning efficiency.
– The reamer is activated via ball-dropping or a pre-set central nozzle to control pressure drop. Its Z-pattern grooves ensure reliable and consistent full expansion and retraction.

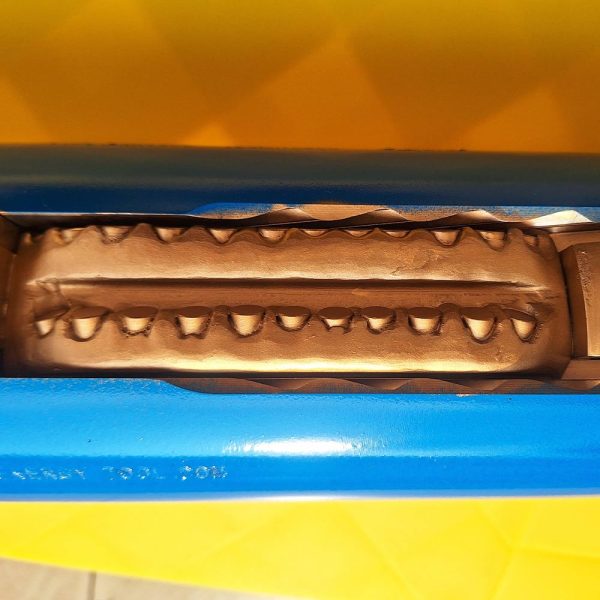

– The cutting structure can be customized to match drill bit dynamics, delivering optimal performance and reliability in challenging drilling applications.
Features of Hole Opener
High Efficiency
Quickly enlarges wellbore for smoother drilling and faster progress.
Durable Construction
Forged body resists wear and extends tool life under tough conditions.
Stable Performance
Maintains consistent operation even in abrasive or hard formations.
Adaptable Design
Versatile cutter arrangement suitable for various drilling applications.
Engineered for Multiple Industries
The hole opener power reamer is designed for professional oil, gas, and mining drilling operations. It efficiently enlarges existing wellbores, ensuring smooth and consistent diameters for subsequent drilling processes. Its robust construction and optimized cutter design allow it to perform reliably in soft to medium hard formations, minimizing downtime and improving drilling efficiency.
Packaging & Shipping
Each drill bit is carefully packed to prevent damage during transportation. Standard packaging includes sturdy wooden boxes or reinforced cartons, ensuring safe delivery.
We deliver via air, sea, or land, depending on customer requirements and destination.
