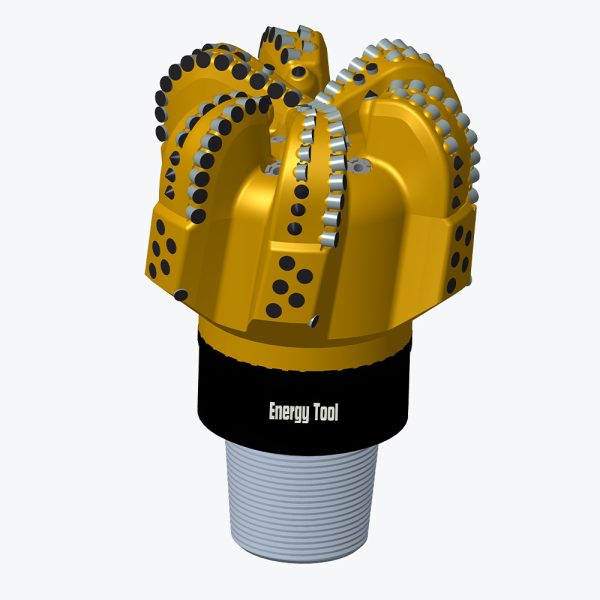

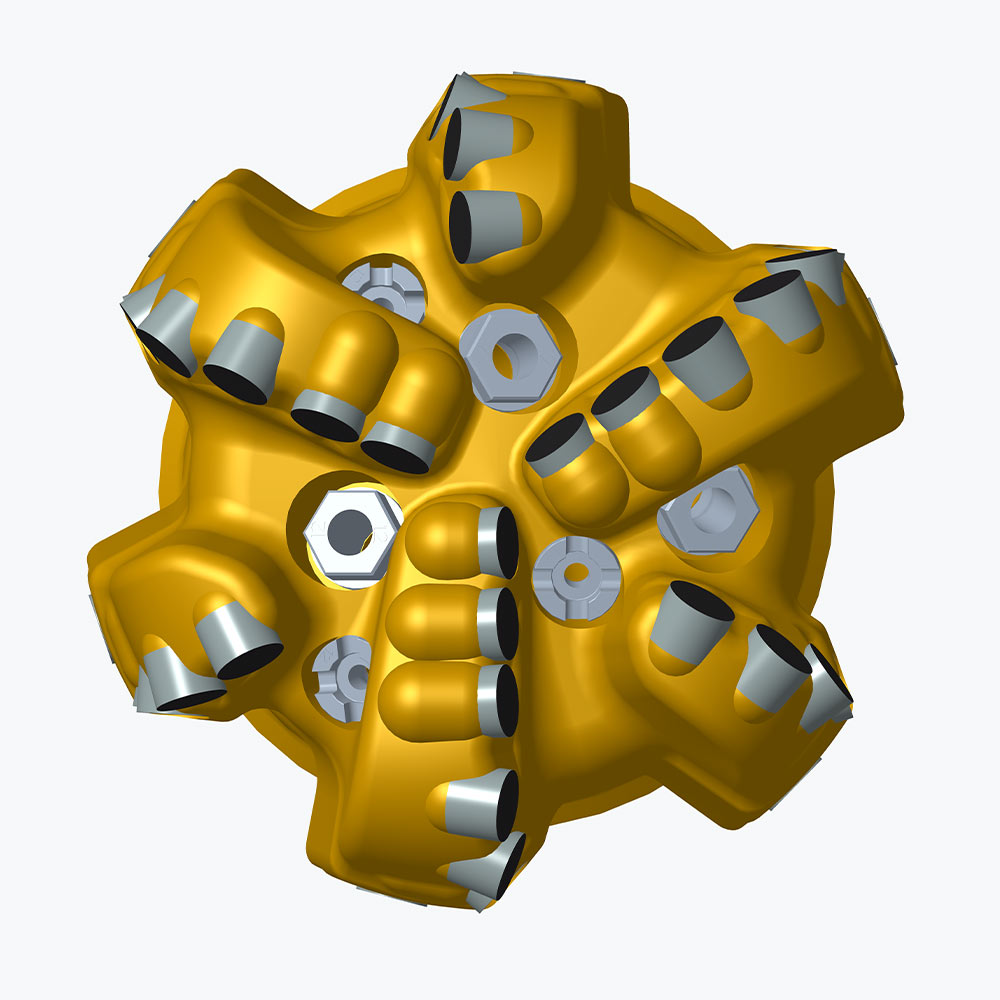

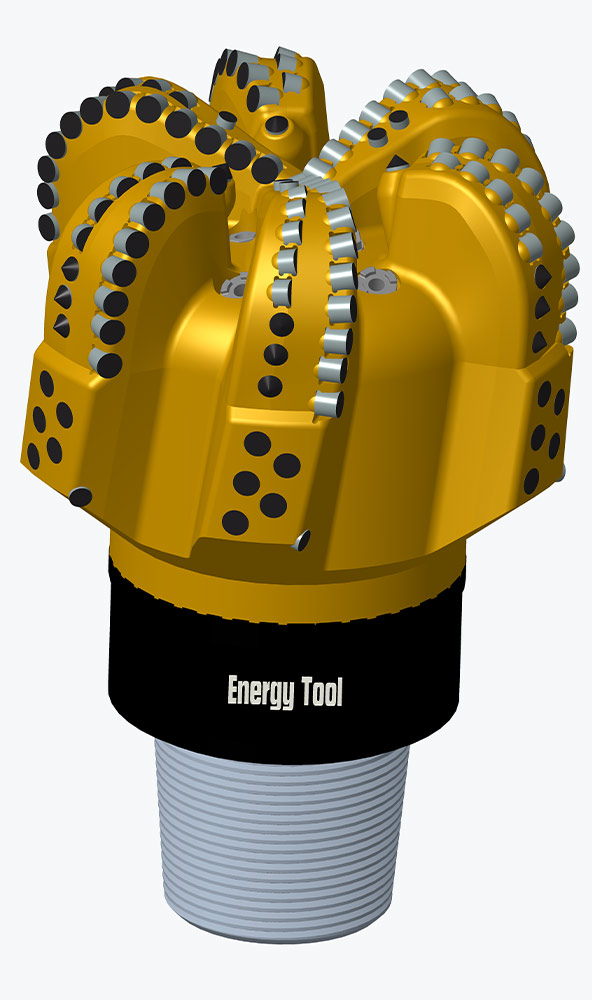

13-5/8 inch API Hard Rock Drilling Rig Bit of PDC Diamond
| Drill Bit | PDC Drill Bit |
| Size | 13-5/8 inch (346.075mm) |
| Body Type | Matrix Body |
| Blade Count | 6 |
| Primary Cutter Size | 16mm |
| Thread Connection | 6 5/8″ API REG PIN |
| Operating Parameters | |
| Weight On Bit | 89–178 KN |
| Make Up Torque | 38–43 KN·m |
| Rotary Speed | 100–DHM |
| Flow Rate | 48–57 LPS |
PDC Drill Bit Overview
- PDC (Polycrystalline Diamond Composite) drill bit is a type of fixed-cutter drill bit, it uses synthetic diamond cutters to shear and scrape rock away, leading to higher rates of penetration and a longer lifespan.
- Commonly used in oil, gas, mining, and geothermal projects, PDC drill bits offer faster drilling speeds and longer service life compared to conventional drill bits.
- They are particularly valuable in remote or deep drilling environments where efficiency and reliability are critical.
Features of Matrix Body PDC Drill Bits
High Hardness Material
Matrix is a hard, rather brittle composite made from tungsten carbide grains bonded with a tough metallic binder.
Strong Compressive Strength
Matrix can endure high compressive loads during drilling operations
Excellent Abrasion Resistance
Its high hardness provides strong resistance to wear and erosion in abrasive formations.
Lower Impact Resistance
Compared with steel bodies, matrix materials have reduced toughness and are less resistant to impact loads.
Engineered for Multiple Industries
Our Matrix Body PDC Drill Bits are designed for efficient and reliable drilling in oil, gas, and mining operations. Ideal for drilling through hard rock formations, these drill bits provide superior wear resistance, long service life, and consistent performance under extreme conditions.
Packaging & Shipping
Each drill bit is carefully packed to prevent damage during transportation. Standard packaging includes sturdy wooden boxes or reinforced cartons, ensuring safe delivery.
We deliver via air, sea, or land, depending on customer requirements and destination.
